Matching Filter Blocks with Probes

The essential feature of any fluorescence microscope is to provide a mechanism for excitation of the specimen with selectively filtered illumination followed by isolation of the much weaker fluorescence emission using a second filter to enable image formation on a dark background with maximum sensitivity. These conditions are satisfied in modern fluorescence instruments by a combination of filters that coordinate excitation and emission requirements based on the action and properties of the dichromatic beamsplitter. This interactive tutorial enables visitors to determine the optimum fluorophore characteristics necessary to maximize the efficiency of excitation and emission in conjunction with current Olympus fluorescence filter blocks.

The tutorial initializes with the spectral profiles of a standard Olympus longpass ultraviolet filter block superimposed on a suitable fluorophore in the graph entitled: Spectral Profiles. The absolute transmission ratio for the selected filter combination is designated on the left ordinate (Transmittance, %), while the normalized intensities of the selected fluorophore excitation and emission spectra are indicated by the right ordinate (Relative Intensity, %). The Spectral Cross-Section is indicated in the overlap region between the fluorophore absorption and excitation filter transmission by a light blue color. Likewise, the cross-section for emission is presented as a red color in the overlap region. The cross-sectional overlap colors can be toggled on or off using the Excitation and Emission check boxes. Individual filter and/or probe spectra can also be deleted by removing the appropriate checkmark from the Filter Spectra and Probe Spectra check boxes, respectively. When dual and triple band excitation filter combinations are selected, a Crossover check box appears beneath the Probe Spectra controls. Disable this check box to eliminate crossover between the multiple spectra used in these filter combinations for ease in viewing. Note that important filter set spectral parameters and the fluorescent probe peak wavelengths for excitation and emission are indicated next to the filter and probe check boxes.

In order to operate the tutorial, choose an excitation range using the radio button selection on the left-hand side of the window. Choices range from ultraviolet through the infrared, as well as dual and triple excitation, and fluorescent protein filter combinations. After selecting an excitation range, use the Choose A Filter Set pull-down menu to select the desired filter combination (see Table 1). Next, use the Choose A Probe menu to review a collection of fluorescent probes that feature spectral profiles consistent with the selected filter combination (Hint: for faster operation, after selecting the filter set, toggle rapidly through the probe selections using the up and down arrow keys).

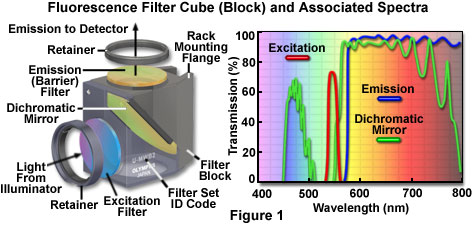

The anatomy of a typical fluorescence filter block is diagrammed schematically in Figure 1, along with the associated spectral profiles of the dichromatic mirror, excitation, and barrier filters. Filter blocks are usually assembled with custom tools supplied by the manufacturer so the operator can interchange filters and the dichromatic mirror. The excitation and barrier filters are secured into place with retainer clips, optical glue, or circular threaded mounts (see Figure 1). In general, these filters can be removed without opening the optical block because they are positioned over recessed apertures on the flat exterior surfaces. Replacing a dichromatic mirror is more difficult and requires complete disassembly of the block to gain access to the interior. Most block sections are cast with a 45-degree diagonal joint that serves double duty by protecting the interior and supporting the dichromatic mirror at the proper angle. After removing the fasteners holding the block sections together (pins or small screws), the mirror can be removed by loosening or moving the retainer clip, and then very carefully dropping it out of the block. The dichromatic mirror should be handled with caution because the interference coating is usually not protected and can be easily scratched. Several of the filter manufacturers who supply the microscope companies also offer a wide selection of aftermarket filters and dichromatic mirrors for a variety of fluorescence applications.

Fluorescence filter designs include longpass, shortpass (edge filters), and the narrow, medium, and wide family of bandpass filters. Examples of several common filter profiles are illustrated by the spectra presented in Figure 1, and a catalog of current Olympus filter combinations is listed in Table 1. The emission filter spectrum (blue curve) in Figure 1 is produced by a longpass interference filter having a cut-on wavelength of approximately 575 nanometers. Longer wavelengths are transmitted through the filter, while shorter wavelengths are blocked. A narrow bandpass excitation filter from the same set (red curve, Figure 1) has a bandwidth of approximately 20 nanometers, while the dichromatic mirror (green curve) has transmission regions approximating a medium (455-490 nanometers) and wide bandpass filter (560-775 nanometers). Because the dichromatic mirror effectively serves as a longpass filter in the green, yellow and red regions of the visible spectrum (560 to 700 nanometers), it is treated as such in filter sets. A working knowledge of how fluorophore absorption and emission spectral profiles can be utilized to select the appropriate filter set for fluorescence microscopy is essential to successful implementation of this technique.

Dichromatic mirrors (or beamsplitters) are the most critical component in a fluorescence microscopy filter combination, and resemble longpass interference-type filters that are fabricated to close tolerances with multiple layers of dielectric materials. The major difference between a dichromatic mirror and a standard interference filter is that the mirror is specifically designed for reflection and transmission at defined boundary wavelengths, and must operate at a 45-degree angle with respect to the microscope and illuminator optical axes. Dichromatic mirrors are positioned with the interference coating facing the excitation light source in order to reflect short excitation wavelengths at a 90-degree angle through the optical train to the specimen. The same mirror must also act as a transmission filter to pass long wavelength fluorescence emission from the objective to the image plane. Because the wavelength transition region between almost total reflection and maximum transmission is often limited to only 20 or 30 nanometers, the dichromatic mirror is able to precisely discriminate between excitation and emission wavelengths.

Olympus Universal Fluorescence Mirror Unit Specifications

Olympus Mirror Unit	Excitation Spectral Region	Excitation Range	Dichromatic Mirror Cut-On Wavelength (nm)	Barrier Filter Type
U-MWU2	Ultraviolet	Wide	400	Standard
U-MNU2	Ultraviolet	Narrow	400	Standard
U-MNUA2	Ultraviolet	Narrow	400	Bandpass
U-MNV2	Violet	Narrow	455	Standard
U-MWBV2	Blue-Violet	Wide	455	Standard
U-MNBV2	Blue-Violet	Narrow	455	Standard
U-MSWB2	Blue	Super Wide	455	Interference
U-MWB2	Blue	Wide	500	Interference
U-MNB2	Blue	Narrow	500	Interference
U-MWIB2	Blue	Wide	505	Interference
U-MNIB2	Blue	Narrow	505	Interference
U-MWIBA2	Blue	Wide	505	Bandpass
U-MNIBA2	Blue	Narrow	505	Bandpass
U-MGFP/XL	Blue (GFP)	Wide	505	Interference
U-MGFPA/XL	Blue (GFP)	Wide	505	Bandpass
U-MCFPHQ	Blue (CFP)	Narrow HQ	450	Bandpass HQ
U-MGFPHQ	Blue (GFP)	Narrow HQ	485	Bandpass HQ
U-MWG2	Green	Wide	570	Standard
U-MNG2	Green	Narrow	570	Standard
U-MSWG2	Green	Super Wide	570	Standard
U-MWIG2	Green	Wide	565	Interference
U-MYFPHQ	Green (YFP)	Narrow HQ	505	Bandpass HQ
U-DM-CY3	Green	Wide	565	Bandpass
U-MWIY2	Yellow	Wide	600	Interference
U-DM-CY5	Red	Wide	660	Bandpass
U-DM-CY7	Red-Infrared	Wide	770	Bandpass
U-DM-DA/FI2	Violet Blue	Dual Bandpass	Dual Bandpass	Dual Bandpass
U-DM-DA/TR2	Violet Green	Dual Bandpass	Dual Bandpass	Dual Bandpass
U-DM-DA/PI2	Violet Green	Dual Bandpass	Dual Bandpass	Dual Bandpass
U-DM-DA/TX2	Violet Yellow	Dual Bandpass	Bandpass Longpass	Dual Bandpass
U-DM-FI/TR2	Blue Green	Dual Bandpass	Bandpass Longpass	Dual Bandpass
U-DM-FI/TX2	Blue Yellow	Dual Bandpass	Bandpass Longpass	Dual Bandpass
U-DM-FI/PI2	Blue Yellow	Dual Bandpass	Dual Bandpass	Dual Bandpass
U-DM-DA/FI/TR2	Violet Blue Green	Triple Bandpass	Bandpass Longpass	Triple Bandpass
U-DM-DA/FI/TX2	Violet Blue Yellow	Triple Bandpass	Bandpass Longpass	Triple Bandpass
U-DM-DA/FI/PI	Violet Blue Yellow	Triple Bandpass	Triple Bandpass	Triple Bandpass

Table 1

Fluorescence filter sets are designed so that a particular band of excitation wavelengths exactly matches the reflection region in the dichromatic mirror. The result is efficient reflection of excitation light through the microscope and onto the specimen. Fluorescence emission from the specimen must match a high transmission region in the dichromatic mirror in order to enable these wavelengths to pass through to the detector. The barrier filter is less important in the overall scheme, but still plays an important role in ensuring that scattered and reflected excitation wavelengths, fluorescence from probes other than the target, and general background intensity due to autofluorescence is removed. The most important factor in creating a filter set is to make certain that the transmission, reflection, and emission profiles of the involved filters match in the appropriate regions. Otherwise, excitation wavelengths might be able to pass through the dichromatic mirror and fog the image, or fluorescence emission can inadvertently reflect at the mirror to compromise image brightness.

Even in seemingly perfectly matched filter combinations, slight overlaps between spectral profiles of the individual filters can occur to diminish performance. Of particular concern is crosstalk between the excitation filter and the dichromatic mirror, which enables some of the excitation light to pass through the mirror and reflect from the walls of the filter block. Light reflected at highly oblique angles can be partially transmitted through the barrier filter, as discussed above, to reduce image contrast. This type of leakage through filters is termed bleed-through or crossover, and occurs to a greater or lesser extent with practically all filter combinations. One of the primary areas of concern with both filter manufacturers and microscope companies is to improve the design of fluorescence filter combinations in order to reduce the level of crossover.
